Wet Mortar Spray Machine
video

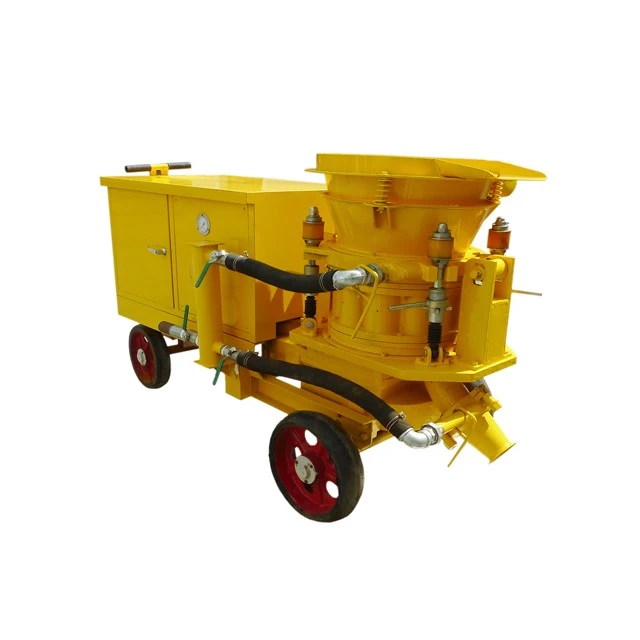

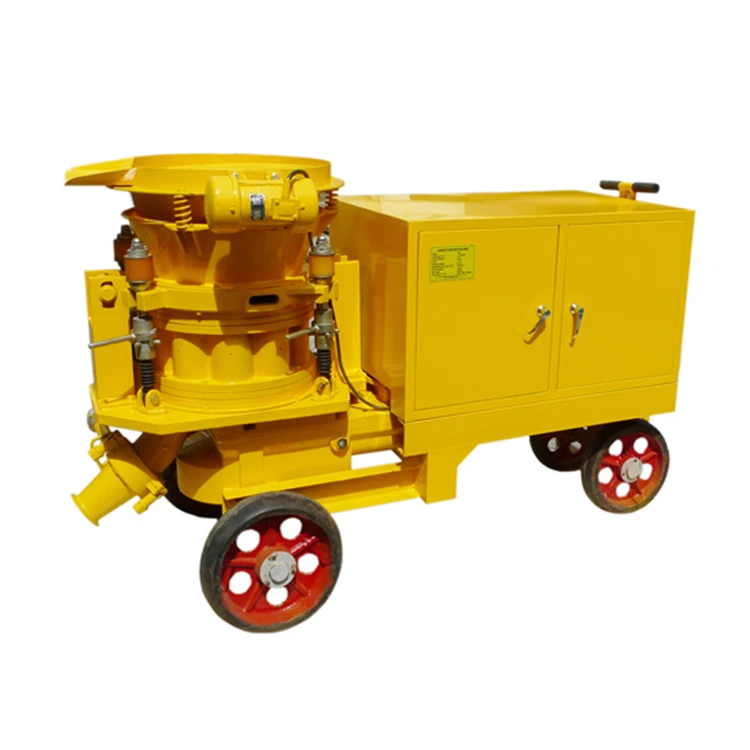

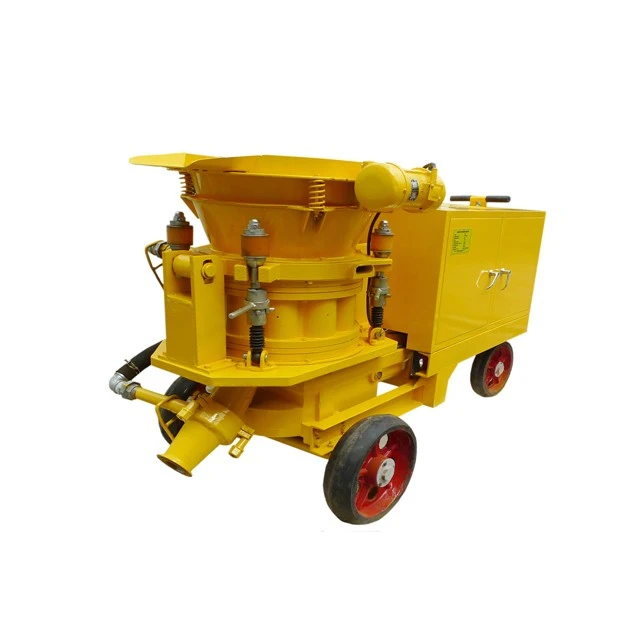

Wet Mortar Spray Machine

Model: PS
PS Wet Mortar Spray Machine is also called wet spray machine. It is ideal equipment for concrete anchor spray construction. The accelerating agent delivery adopts an independent system. It is accurately controlled by a standard metering pump and can be adjusted freely. A special rubber sleeve is installed inside the cyclone top shell.
Send Inquiry
Product Introduction

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of wet mortar spray machine in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced wet mortar spray machine made in China, welcome to get quotation from our factory.



PS Wet Mortar Spray Machine is also called wet spray machine. It is ideal equipment for concrete anchor spray construction. The accelerating agent delivery adopts an independent system. It is accurately controlled by a standard metering pump and can be adjusted freely. A special rubber sleeve is installed inside the cyclone top shell. With wind pressure vibration, it avoids material sticking and keeps the inner wall smooth, which helps mixture transportation. PS Wet Mortar Spray Machine has stable performance, simple operation, easy maintenance, low energy consumption, long service life, environmental protection performance and better spraying layer quality.



1
2
3



Features



1. PS Wet Mortar Spray Machine is ideal equipment for concrete anchor spray construction, wet spray and moist spray work.

2. The accelerating admixture conveying system is independent. It is precisely measured by a standard metering pump and can be adjusted freely.

3. PS Wet Mortar Spray Machine runs stably, easy to maintain, energy saving, long service life, eco-friendly, and improves the overall spraying layer quality.



Application



PS Wet Mortar Spray Machine is widely used in tunnels, culverts, railways, highways, water conservancy projects, underground engineering, coal mines, high gas mines, roadways, hydraulic and electric engineering, slope protection, soil nailing construction and anchor spray support projects.



Technical parameters



Model

PS

Supply power

380V 50HZ

Motor power

7.5KW

Cement/sand ratio

1 : 3-5

Cement-sand ratio

≤0.55-0.65

Maximum aggregate diameter

Ø15

Output

7m3/h

Working wind pressure

0.4-0.6Mpa

Air consumption

≥10m3/h

Horizontal conveying distance

30m

Vertical conveying height

15m

weight

900KG

Size

2000*800*1100mm



Hot Tags: wet mortar spray machine, China wet mortar spray machine manufacturers, suppliers, factory
