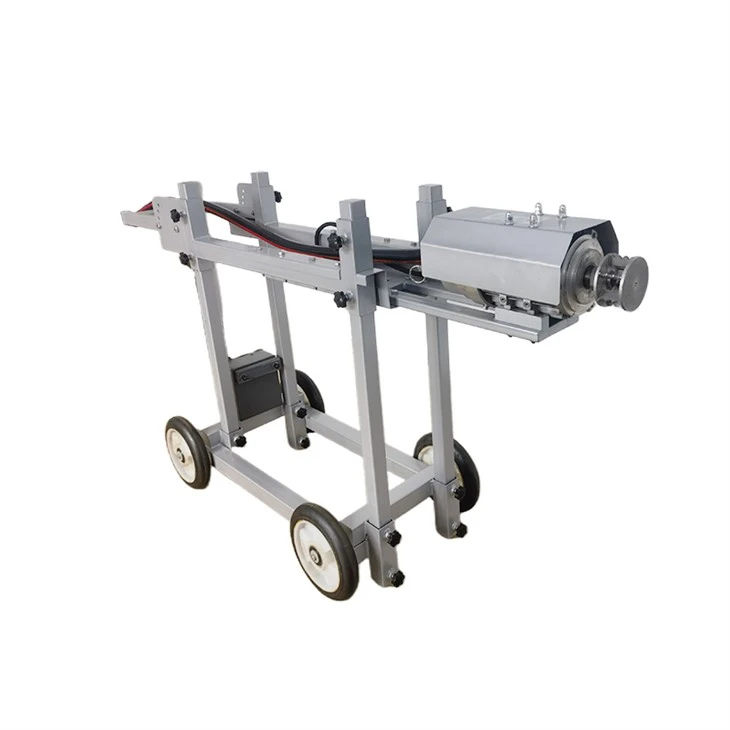

Piping Liner Spray Truck

Wallgoe CCCP construction technology holds a national authorized patent. The main body is made of highly wear‑resistant materials. We fit different rotary sprayers and install adjustable expansion mechanisms. Working diameter can be enlarged or reduced freely, so the equipment can pass smoothly through pipes of various sizes.

When people run the Piping liner spray truck, they only need to send cement mortar repair material to the inlet of the rotary sprayer along the central axis. The truck moves forward inside the pipeline. A continuous, dense and high‑strength inner lining with adjustable thickness forms on the pipe wall. This finishes trenchless centrifugal spraying repair for pipeline linings.

Piping liner spray truck carries a 360‑degree high‑definition camera. The camera records real‑time conditions inside the pipeline. Imaging equipment turns collected data into video signals and sends them to an external display. All footage gets stored on an onboard chip. Operators on the ground can watch the whole working process clearly.

According to different inner‑wall conditions of pipes to be repaired, Piping liner spray truck comes in two versions: wheel‑driven walking type and sliding traction type.
