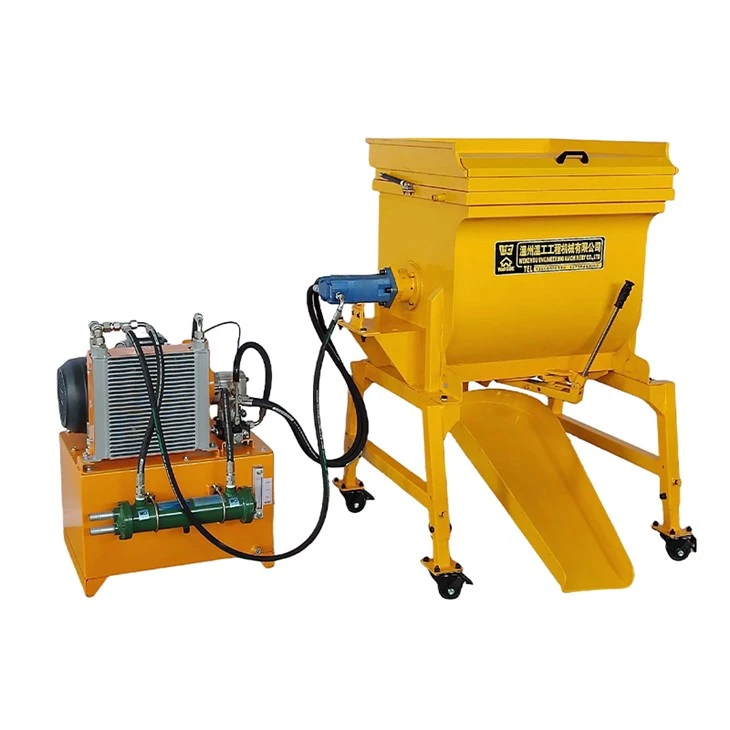

Compulsory Concrete Mixer

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of compulsory concrete mixer in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced compulsory concrete mixer made in China, welcome to get quotation from our factory.



Core Power and Mixing Performance: Hydraulic Drive for More Thorough Mixing



Our compulsory concrete mixer relies on a full hydraulic drive for its operation. Power comes from a big hydraulic motor, which feeds torque straight to the mixing paddles. When you put this unit next to standard mixers run by electric motors, our design holds output stable and delivers stronger peak torque. Paddles turn at low speed with high torque, within the range of 20‑30 rpm. Each blade follows a spiral‑arc profile to shear, squeeze and tumble materials over and over again. Inside the mixing drum, mortar, concrete and cement paste get mixed from every possible direction. Even thick‑bodied materials such as dry‑mixed mortar and high‑strength concrete above grade C40 can be handled well, with no local material build‑up or uneven mixing. Slump deviation stays at ≤±5mm, and mixing uniformity reaches over 98%. These figures satisfy concrete quality standards needed for precast parts, high‑rise building sites and road‑repair jobs.





Convenient Mobility and Operational Flexibility: Modular Design for Hassle‑Free Relocation



This trailer‑style all‑in‑one Compulsory concrete mixer weighs no more than 8 tons in its complete form. Construction crews can haul the equipment using ordinary pickup trucks and light‑duty road vehicles. There is no requirement to fully take apart the unit for transport. Once it arrives on‑site, site workers only need to hook up water and power connections before getting ready for operation. Full site setup takes one‑two hours, cutting down a great deal of pre‑construction preparation work. Three mixing‑drum sizes are available: 350L, 500L and 750L. Site teams are free to pick drum capacities that fit their actual job requirements. Small‑capacity units work well for renovation and repair‑type jobs, and larger models can supply batching and supplementary materials for small‑to‑medium mixing stations. Hydraulic outriggers and a travel system are fitted to the machine. It can complete a full 360‑degree turn on‑site and finish levelling work quickly. Operators can run this mixer in narrow working spaces, including basements and residential roads, without extra ground levelling work. It suits mobile construction assignments covering municipal works and rural infrastructure projects.



Safety and Intelligent Upgrades: Multiple Protections for Worry‑Free Operation



Safety Design: Guardrails and an emergency‑stop button are installed all around the mixing drum's feed inlet. The hydraulic system comes with an overload‑protection valve and pressure‑monitoring parts. If materials jam inside the drum or the hydraulic motor runs under overload, the system cuts power automatically to stop machine damage. Rated IP55 for electrical protection, the whole unit works reliably outdoors under humid and dusty field conditions and keeps on‑site staff safe.



Intelligent Control: A PLC control unit runs this mixer, with support for both manual and automatic operating modes. Field workers can set mixing time, rotation speed and other operating parameters ahead of time. Operators may view the full mixing workflow via the display screen. Built‑in automatic fault diagnosis and prompt features help to lower human operating errors. In addition, a spare IoT connection port is reserved on the equipment. Users can link this mixer to construction‑management platforms. Operation logs and mixing‑quality reports can be uploaded in real time, meeting data‑traceability demands for smart building sites.

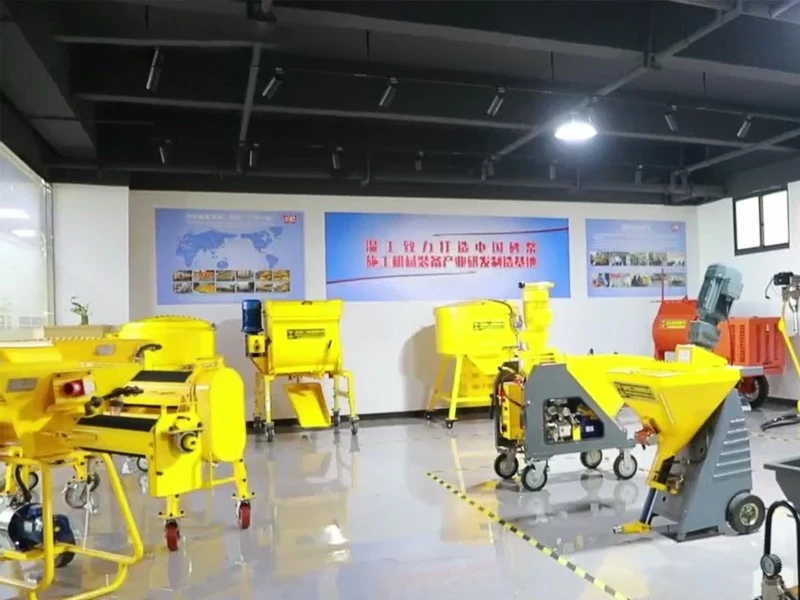

The company specializes in the research and development and manufacturing of cement mortar construction machinery and equipment. Its core products include: mortar conveying pumps, mortar spraying machines, polymer fiber mortar spraying machines, grouting pumps, planetary ultra-high performance concrete mixers, and concrete pumps.
