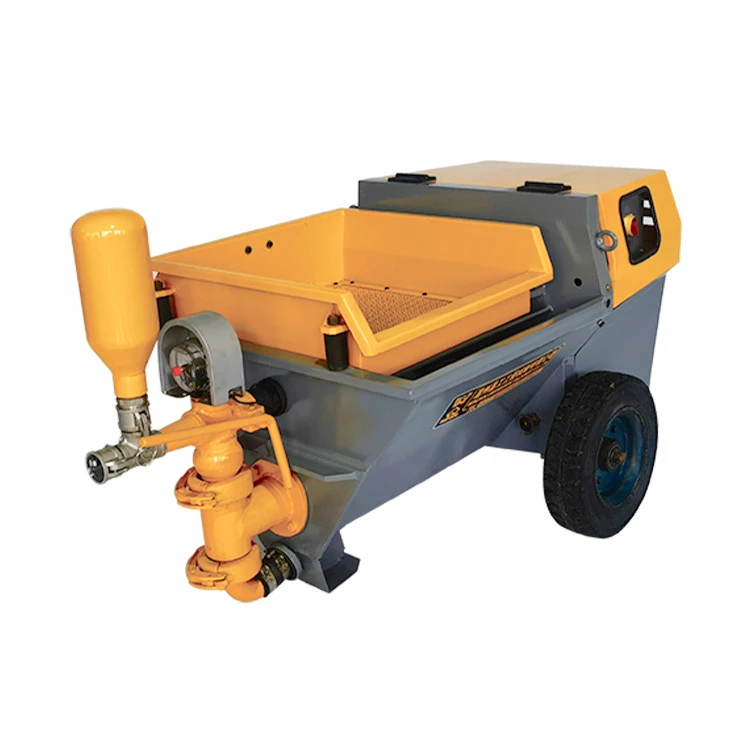

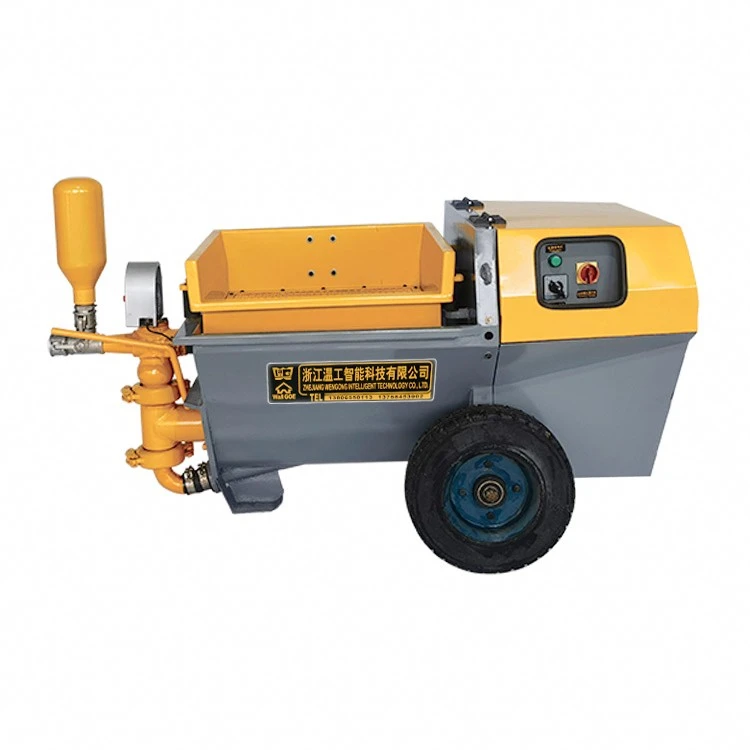

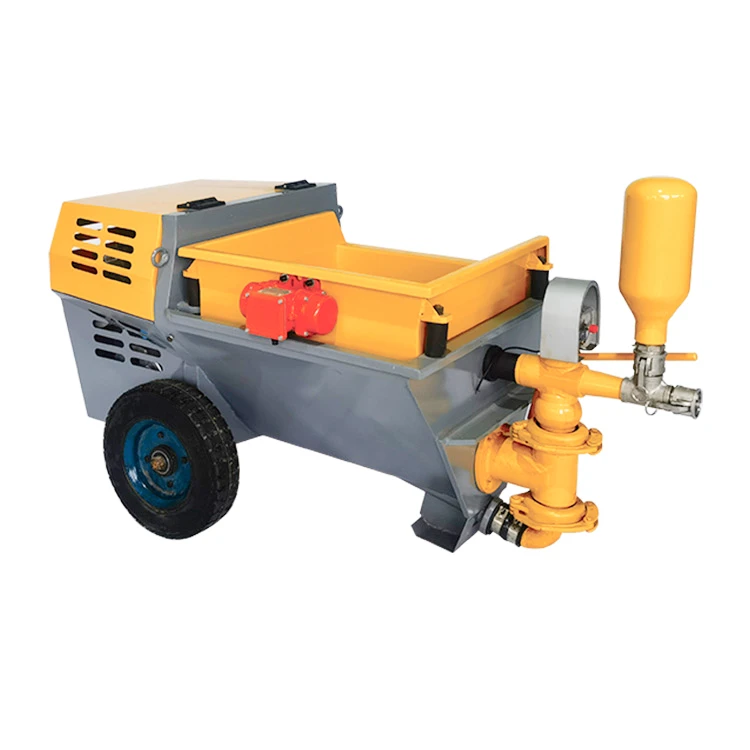

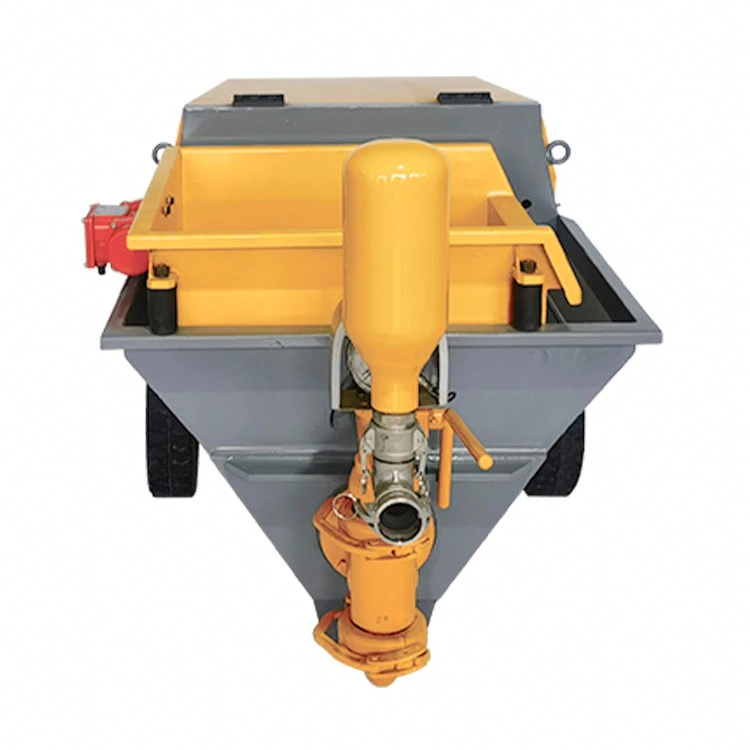

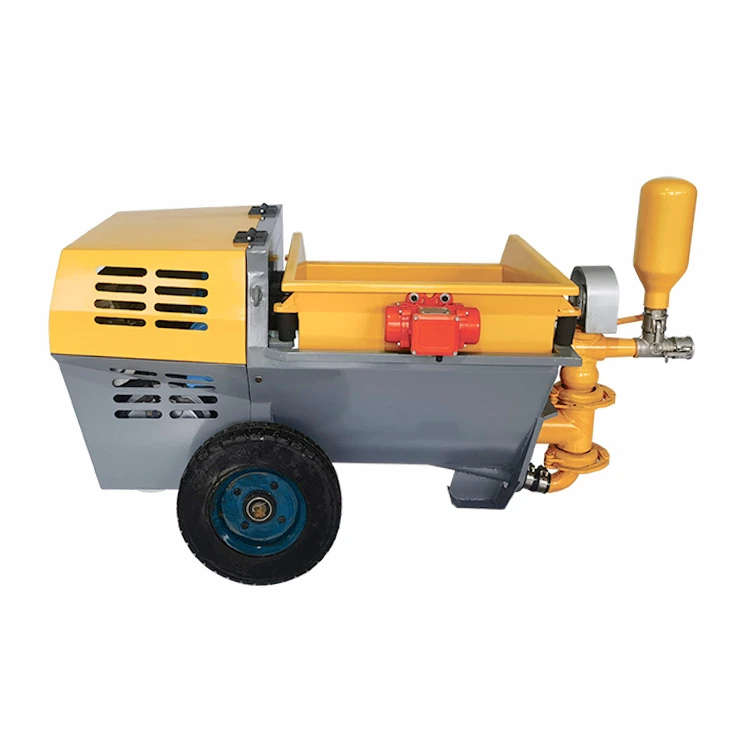

Piston Plaster Pump

Model: HP3
HP3 Piston Plaster Pump is suitable for conveying and spraying pre-mixed mortar and on-site mixed mortar. It supports materials with aggregate size below 6mm.
Send Inquiry
Product Introduction

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of piston plaster pump in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced piston plaster pump made in China, welcome to get quotation from our factory.



HP3 Piston Plaster Pump is suitable for conveying and spraying pre-mixed mortar and on-site mixed mortar. It supports materials with aggregate size below 6mm.



HP3 Piston Plaster Pump provides even, continuous and efficient spraying performance. It can be used for building exterior wall plaster spraying. It is also widely used for hole and gap pressure grouting in roads, bridges, tunnels, water conservancy projects and underground engineering.



2
3
4



Features



1. It works well with ready-mixed mortar and can pump self-levelling screed materials.

2. Adopting piston pump technology, it supports easy and large-area plaster spraying work.

3. A buffer device is installed at the outlet to effectively reduce material ripple during operation.

4. The HP3 Piston Plaster Pump is suitable for pumping, conveying, grouting and spraying ordinary mortar, premixed mortar and special mortar.

5. The piston pump can process aggregate particles up to 6mm. It runs with high efficiency, low maintenance cost and low power consumption.

6. With only one piston part, the machine can complete more than 30,000 square meters of plastering area under 2cm thickness standard. It helps users save a lot of operating costs.



Technical parameters



Model

HP3

Supply power

380V 50HZ

Output

24/30L/min

Delivery pressure

15bar

Horizontal conevying distance

40-50m

Vertical conveying distance

12-15m

Motor power

2.2KW

Hopper volume

140L

Net weight

240KG

Size

1590*860*750mm
