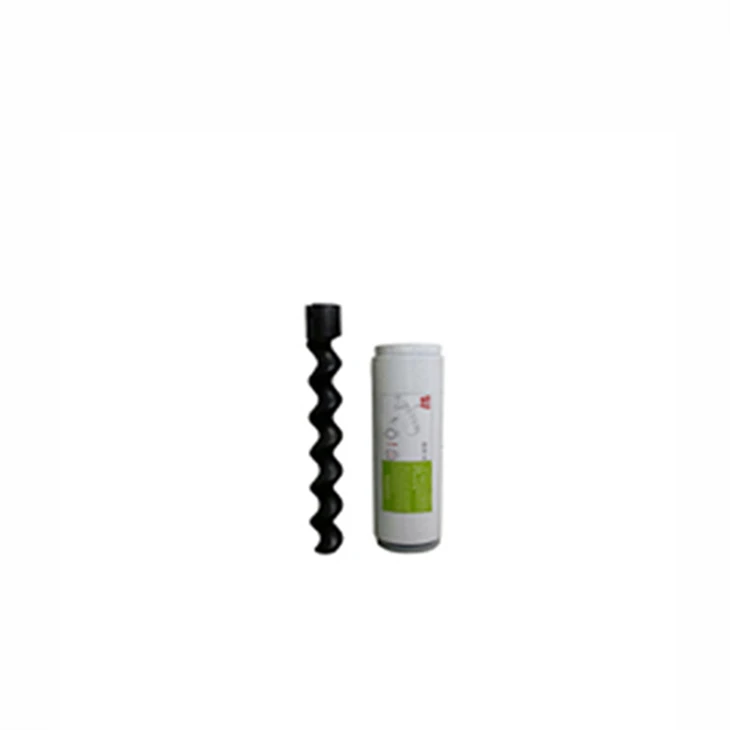

Stator for Mortar Pump
Stator for mortar pump are the core feeding and pumping components of the screw Plastering Machine , also known as the "rubber sleeve screw pair", and are key paired components that make up the equipment's extrusion and conveying system. rotor is usually a metal spiral screw that has been processed with high precision, while the stator is an inner spiral cavity sleeve made of elastic rubber material. two are tightly assembled in an interference fit manner, together forming a continuous and sealed conveying chamber.require electromagnetic‑related performance. Their key function is to form a continuous, sealed conveying chamber by means of profile meshing. Media such as cement mortar, thermal‑insulation mortar and gypsum putty can then be delivered evenly from the material chamber to the spray gun, with no pulsation or backflow.
Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of stator for mortar pump in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced stator for mortar pump made in China, welcome to get quotation from our factory.
Stator for mortar pump are the core feeding and pumping components of the screw Plastering Machine , also known as the "rubber sleeve screw pair", and are key paired components that make up the equipment's extrusion and conveying system. rotor is usually a metal spiral screw that has been processed with high precision, while the stator is an inner spiral cavity sleeve made of elastic rubber material. two are tightly assembled in an interference fit manner, together forming a continuous and sealed conveying chamber.
Features
As feeding core of the mortar pump, stator for mortar pump mainly undertake two core functions:
1.Continuous closed conveying of materials: Through the eccentric rotation of the rotor in the stator cavity, the mixed mortar/putty and other coatings are continuously sucked in and squeezed, and pushed forward along the spiral cavity to form a stable and pulse free material flow, ensuring the continuity of the spraying operation.
2.Control output pressure and flow rate: The clearance between the Stator and Rotor directly determines the discharge pressure. A stable extrusion structure can ensure uniform output pressure, which can meet the long-distance transportation requirements of high viscosity thick slurry and avoid uneven spraying thickness caused by sudden changes in discharge pressure, ensuring construction quality.
Thanks to the structural characteristics of screw conveying, this component can uniformly transport mortar mixtures containing large particle aggregates, making it less prone to clogging and shear damage. It is a core component that ensures stable construction of mortar spraying machines and improves spraying efficiency.
Technical Parameters
|
Model |
Color |
Output(L/Min at 200rpm) |
Output(L/Min at 400rpm) |
Maximum grain size (mm) |
Pumping pressure (bar) |
Length/Stator (mm) |
Rotor length without pin (mm) |
|
GL10 |
white/blue |
20 |
10 |
3 |
20 |
265/60 |
330 |
