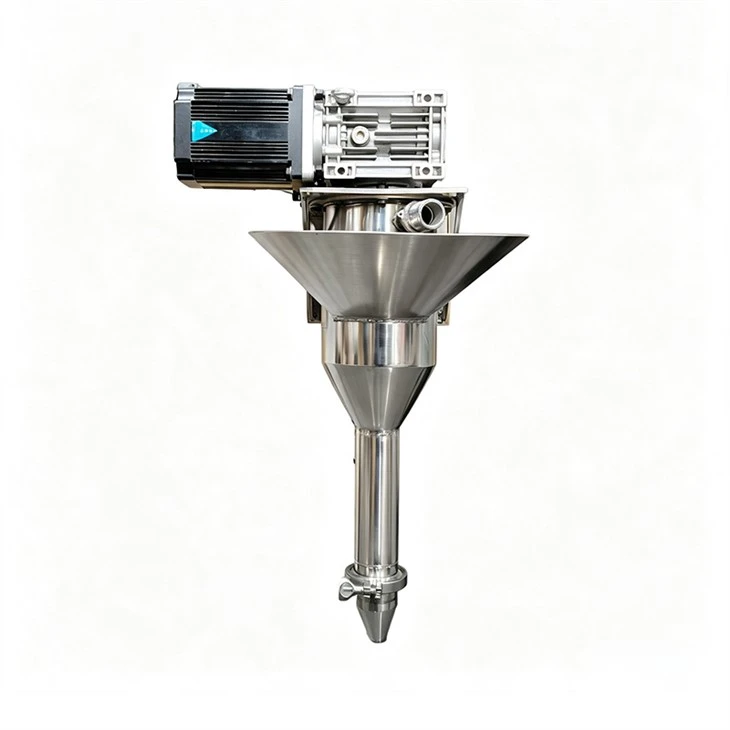

3D Printing Nozzle

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of 3d printing nozzle in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced 3d printing nozzle made in China, welcome to get quotation from our factory.

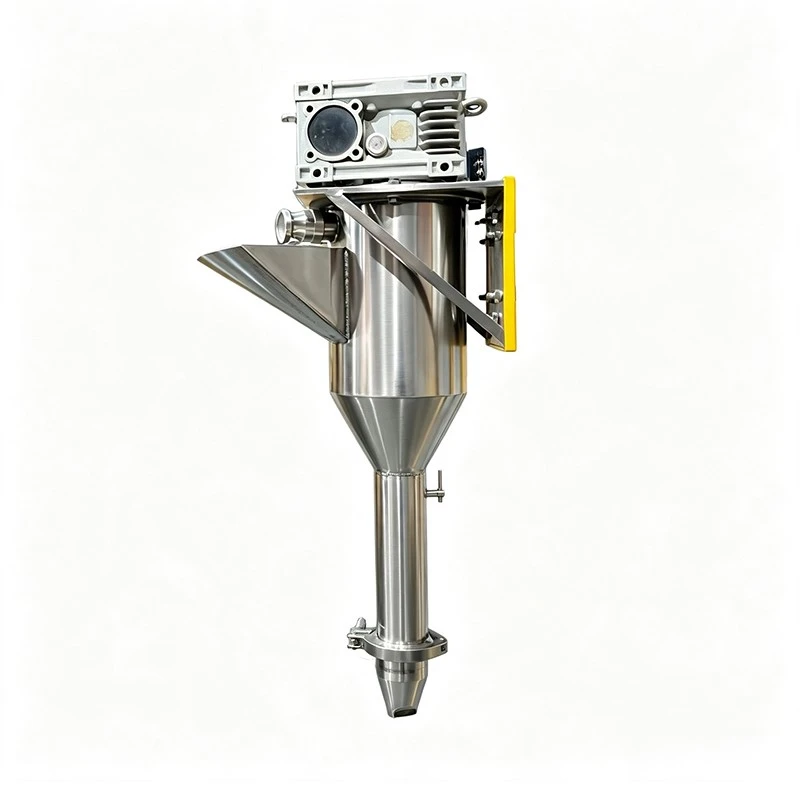

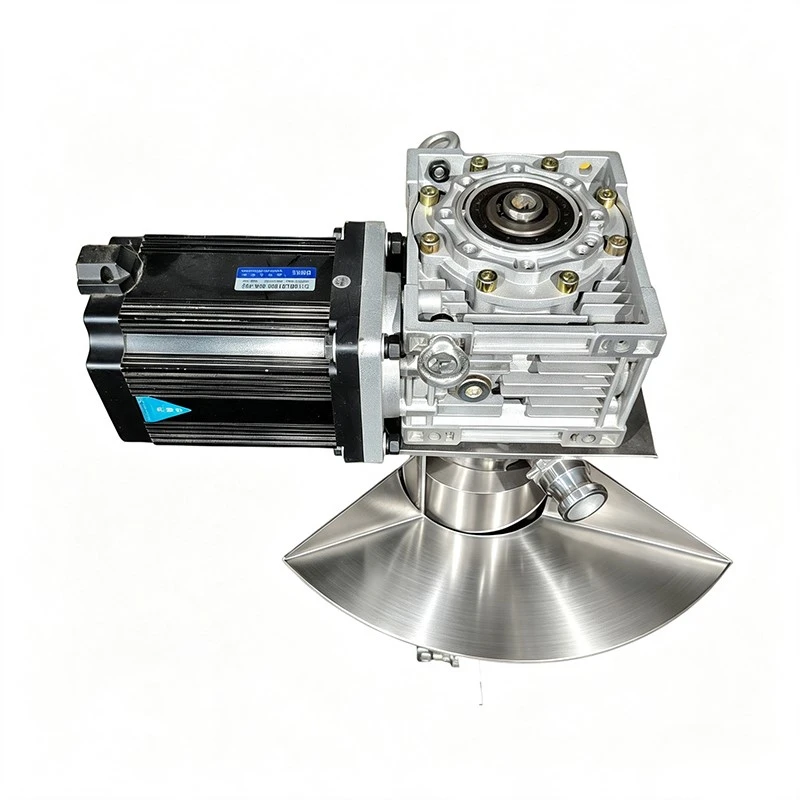

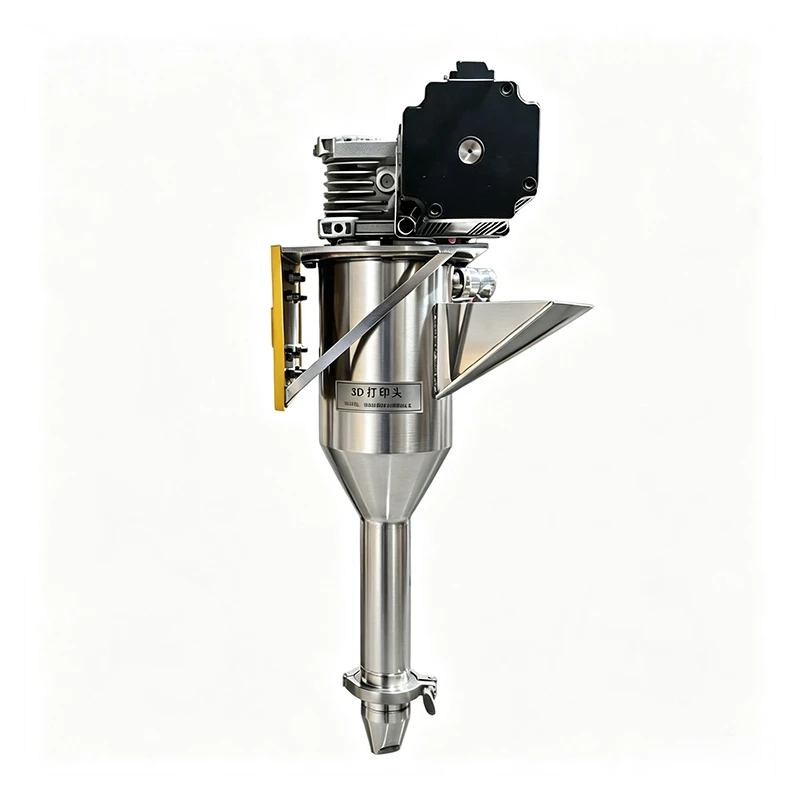

DJ2 Mortar 3D printing nozzle the key part for the machine's end‑extrusion unit. It has a special inner layout, fitted with segmented spiral shaft inside. Large hinge, suspended hinge and small hinge parts are arranged on its upper and middle sections.

When slurry flows into this chamber, it will go through several working steps: secondary mixing, shearing, pressure reduction, degassing and re‑mixing. When dealing with thick, low‑flow slurries like polymer mortar and steel‑fiber reinforced concrete, this printhead can break material agglomerations, get rid of trapped air bubbles and ease pressure fluctuation. In this way, dense and smooth slurry extrusion can be realized. It helps fix common industry troubles including steel‑fiber clustering and loose finished parts caused by trapped air.

Mortar 3D printing nozzle made from 304 stainless steel. The material brings good corrosion resistance and wear resistance, and the whole unit keeps relatively light weight. Quick‑release extruder nozzle and quick‑release clamps are adopted. Operators can finish assembly and disassembly with ease. Users can take it apart and carry out cleaning work during machine stops. This avoids blockage issues brought by fast‑hardening mortar.

We supply various extruder nozzles for option. Standard nozzle sizes cover 8 mm to 26 mm. Custom‑made nozzles with other diameters are also acceptable. It can satisfy different printing cross‑section requirements, ranging from fine test samples, small‑and‑medium‑size workpieces up to large‑scale infrastructure walls.
