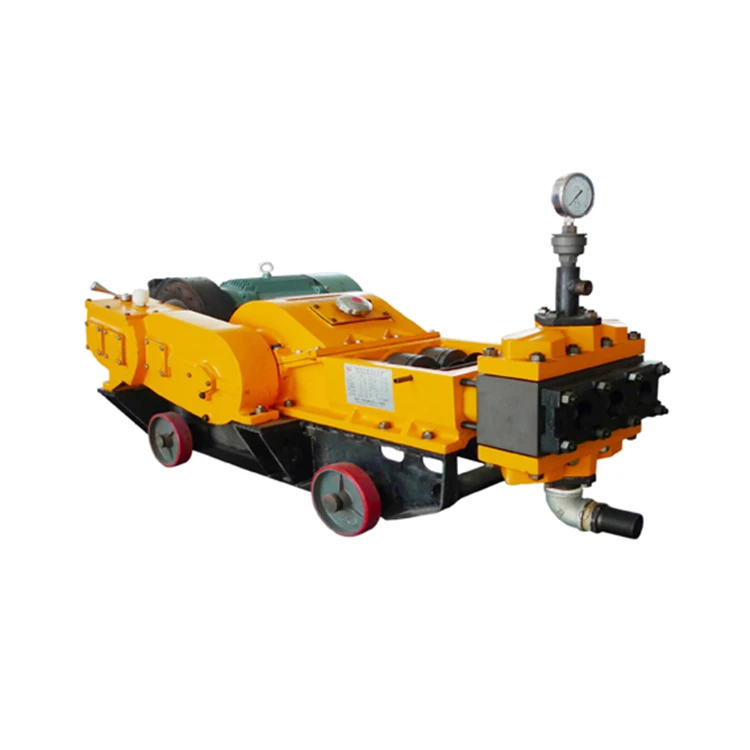

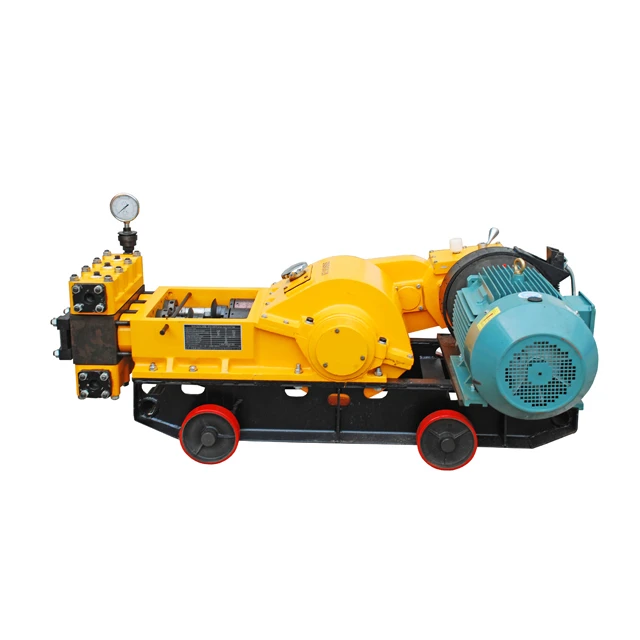

High Pressure Grouting Pump
High pressure grouting pump is a reciprocating single‑acting high‑pressure three‑plunger pump. It can work under high pressure with large displacement and keeps stable performance. High pressure grouting pump is applied to cement slurry transportation and pressure grouting projects.
Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of high pressure grouting pump in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced high pressure grouting pump made in China, welcome to get quotation from our factory.
High pressure grouting pump is a reciprocating single‑acting high‑pressure three‑plunger pump. It can work under high pressure with large displacement and keeps stable performance. High pressure grouting pump is applied to cement slurry transportation and pressure grouting projects. It features powerful operation, smooth pumping, low wear and wide application scope. It can be used for curtain grouting of dam foundations, anchor grouting of slopes, pile foundation grouting in tunnel and underground engineering, and hole grouting of soil‑nailing walls. It can also replace mud pumps for core drilling projects.
The slurry outlet structure of model 3SNS130 differs from that of 3SNS. Slurry enters from one side and discharges from the opposite side. Its seat ring is made of cemented carbide. The pump runs steadily and enjoys a long service life.
Standard configuration
Dust prevention device
Seismic pressure gauge
Double wrench
Mixing rods
Select the configuration
Pipes Ø25mm/ Ø32mm/ Ø38mm
Pulp machine
Storage bucket
Technical parameters
|
Model |
3SNS-A |
|
Supply power |
380V 50Hz |
|
Motor power |
18.5kW |
|
Number of plungers |
3 |
|
Output |
76/207L/min |
|
Delivery pressure |
12/4MPa |
|
Horizontal conveying distance |
380m |
|
Vertical conveying height |
150m |
|
Inlet diameter |
64mm |
|
Outlet diameter |
25mm |
|
Net weight |
930kg |
|
Dimension (L × W × H) |
1800×945×705mm |
FAQ
Q: What is the MOQ?
A: MOQ is 1 set, we allow OEM and sample order, but the cost are paid by your side.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can you arrange the transportation for us?
A: Yes, we can arrange sea and courier transportation.
