Secondary Mortar Mixer

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of secondary mortar mixer in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced secondary mortar mixer made in China, welcome to get quotation from our factory.

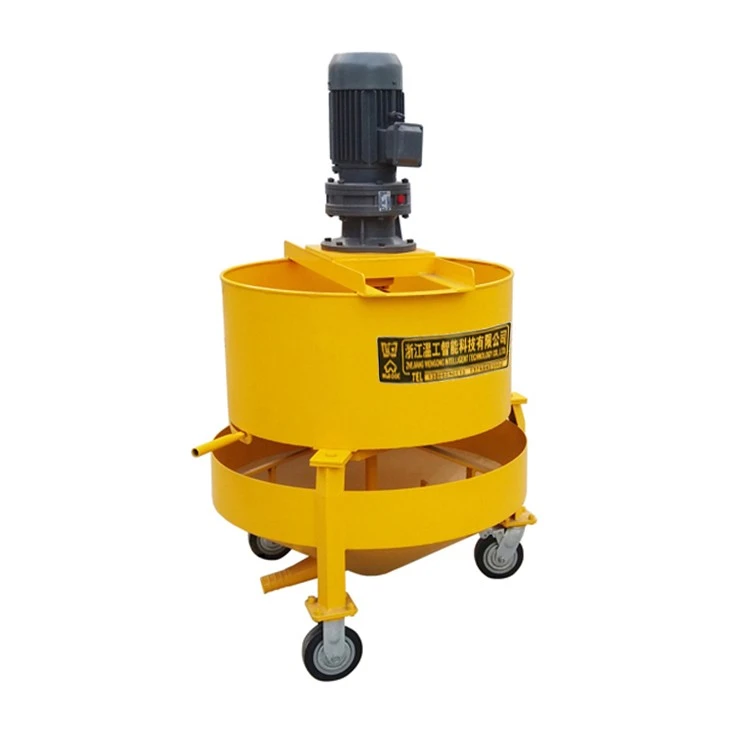

Y1200 Small Secondary mortar mixer is auxiliary slurry‑making equipment specially made for the 3SNS high‑pressure grouting machine. It works well with many mud pumps and slurry pumps, with wide applicability. It serves as key auxiliary equipment to prepare and supply slurry continuously for engineering grouting, lining spraying, foundation reinforcement and other construction work.

Y1200 Small Secondary mortar mixer is mainly used to mix different kinds of cement slurry, mud and other engineering slurries. Its core transmission system uses a high‑speed‑ratio deceleration structure. This keeps power transmission steady and brings strong load‑bearing capacity during operation. Even when mixing high‑viscosity slurries with aggregates for long hours, the machine runs steadily without vibration or strange noise. It performs more reliably than ordinary small mixing machines.

Three layers of mixing blades are fixed on the mixing shaft to ensure good mixing quality. When working, blades at different heights drive slurry in the tank to circulate up and down at the same time. This avoids the common problems of sediment settling at the tank bottom and slurry floating on the top, which often happen in traditional mixing barrels with one or two layers of blades. The finished slurry stays even and stable all the time. Besides, the tank has enough effective capacity. Slurry made in one tank can supply several injection pumps at the same time, so operators do not need to stop and add materials frequently. It suits large‑scale construction with multiple machines running together and improves overall working efficiency.

SJS200/400 Small Secondary mortar mixer is special secondary mixing equipment designed for high‑requirement grouting construction. It can carry out secondary continuous mixing to make slurry more even and stable. It is important supporting equipment for smooth continuous grouting work, and can match most common grouting pumps and grouting machines.

The working process of SJS200/400 Small Secondary mortar mixer is properly designed. Primarily mixed slurry stays in the first‑stage mixing chamber first. It flows into the secondary mixing bucket automatically through the discharge gate for further mixing. After secondary mixing, slurry becomes more uniform with steadier fluidity and can be sent directly to grouting pumps and machines. This secondary mixing method solves slurry sedimentation and unstable fluidity problems in traditional mixing ways. It keeps grouting pumps absorbing materials steadily and working continuously. It also prevents pipe blockage or burst caused by lumpy slurry and uneven flow speed.

1. The structure of the product is actually combining the ordinary mortar mixer and the storage hopper into one, making full use of the power, simplifying the transmission system and saving the cost.

2. The motor is arranged vertically, the support structure is not in contact with the mortar, and the maintenance of the shaft end seal is eliminated.
