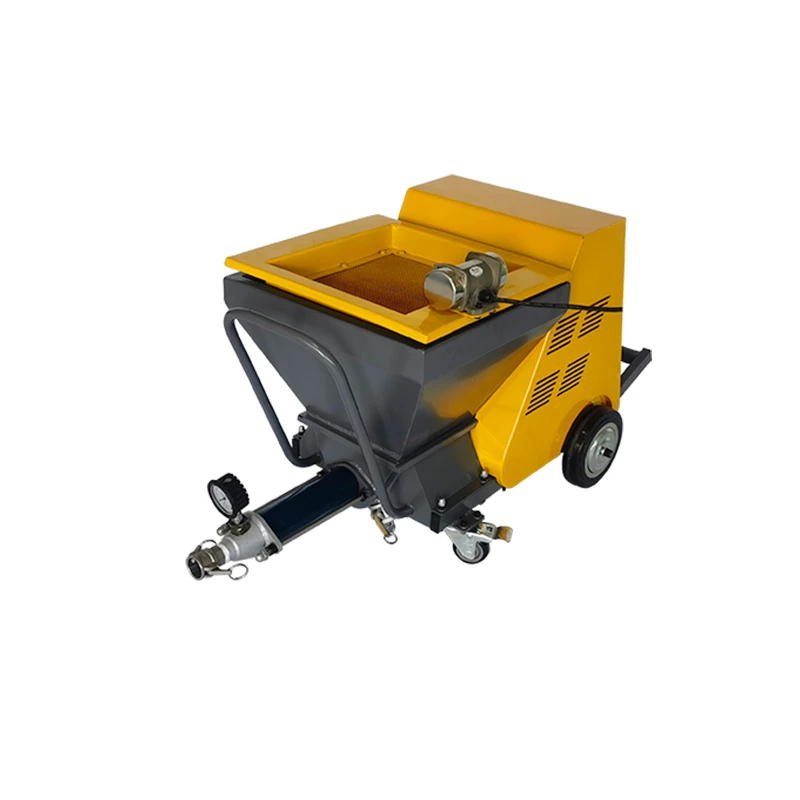

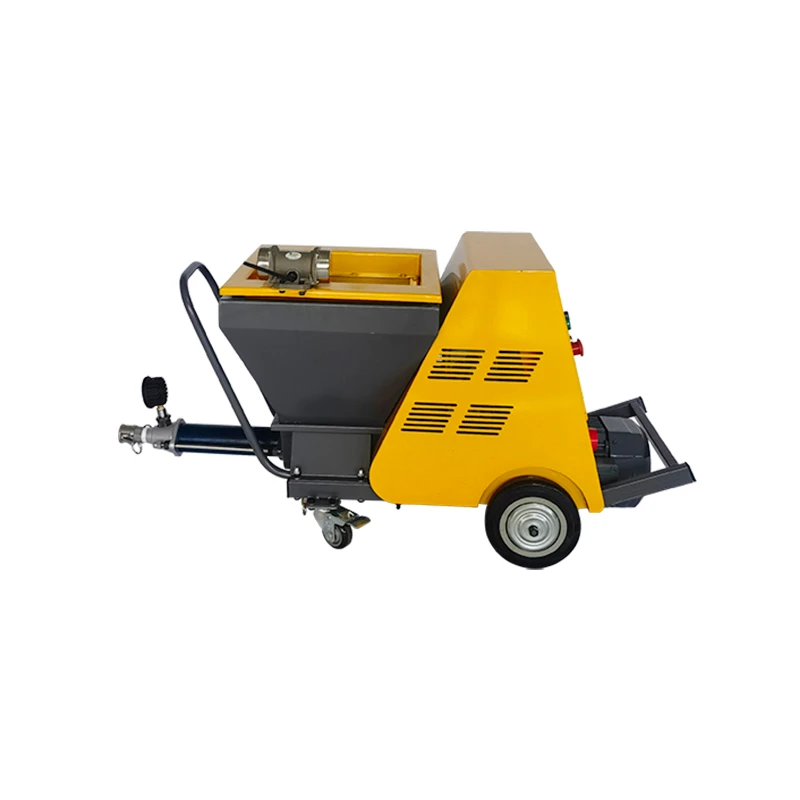

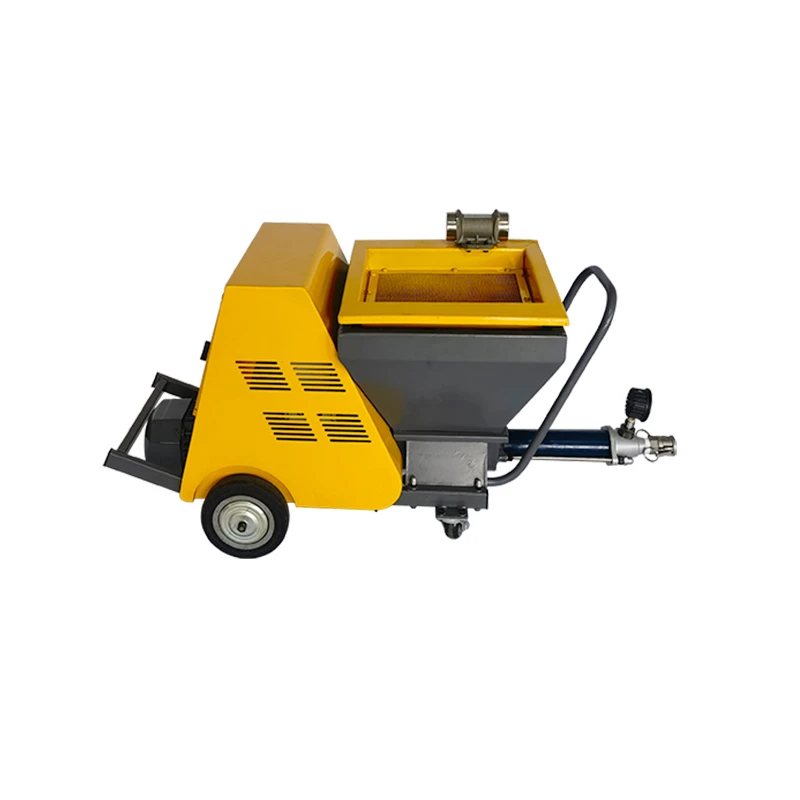

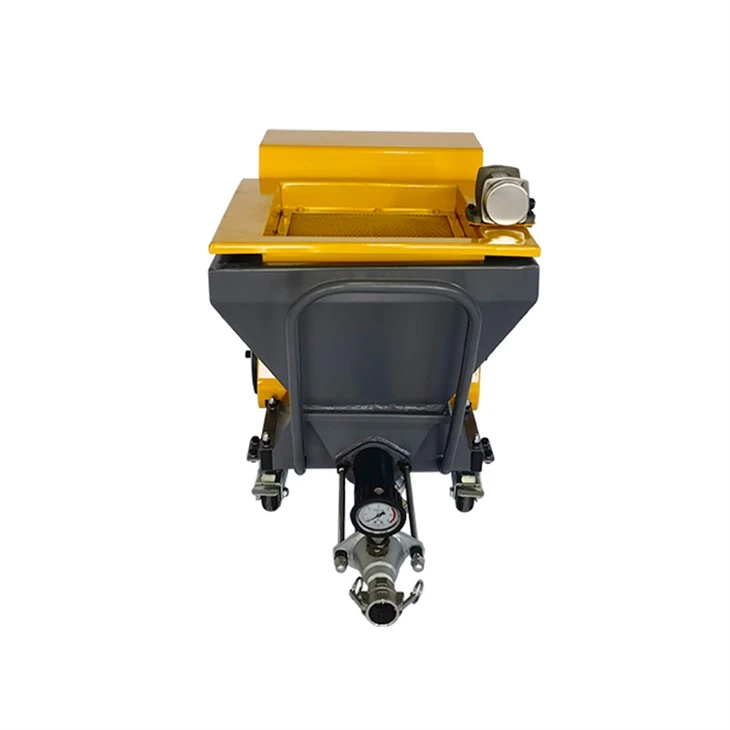

Portable Mortar Pump
JP20 portable mortar pump features simple operation and high portability. effectively frees workers from heavy, dirty and repetitive construction work while enabling high-efficiency and large-area rapid spraying.
Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of portable mortar pump in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced portable mortar pump made in China, welcome to get quotation from our factory.
JP20 portable mortar pump features simple operation and high portability. effectively frees workers from heavy, dirty and repetitive construction work while enabling high-efficiency and large-area rapid spraying.
JP20 portable mortar pump is suitable for pumping and spraying all pumpable wet ready-mixed mortars, including cement mortar, lime plaster, gypsum plaster, masonry mortar, thermal insulation plaster and self-leveling floor screed.
Main Features
1. Adopts linear and simple structure for easy installation and maintenance.
2. Easy operation and high working reliability. It ensures uniform mortar spraying with less material dropping.
3. Greatly saves working time and manpower, significantly improving construction efficiency.
4. Lightweight pump core design allows flexible movement and convenient on-site operation.
Application & Operation Guidelines
Pipeline Installation
All delivery pipelines must be firmly supported during operation. Reduce excessive pipeline elbows as much as possible. Ensure all joints are tightly connected. Do not apply pressure or hang heavy loads on the pipes.
01
Pre-operation Inspection
Check the rotation direction before starting. Ensure the transmission parts, working devices and hopper filter are complete and in good condition before operation.
02
Pipeline Lubrication
To guarantee stable operation, lubricate the pipeline with lime water or lime paste before formal mortar pumping. This step effectively prevents blockage and protects internal components.
03
Continuous Operation Requirements
After the machine runs steadily, mortar can be added for formal pumping. Continuous operation is recommended during working hours. If the machine needs to standby for a short time, open the backwash valve to keep mortar circulating inside the pump body.
04
Technical Parameters
|
Model |
JP20 |
|
Supply power |
380V 50HZ |
|
Output |
20L/min |
|
Delivery pressure |
30bar |
|
Maximum aggregate diameter |
5mm |
|
Horizontal conevying distance |
30m |
|
Vertical conveying distance |
15m |
|
Motor power |
4/5.1 KW |
|
Hopper volume |
100L |
|
Mixing motor power |
2.2KW |
|
Size |
1150*450*500mm |
|
Net weight |
86KG |
