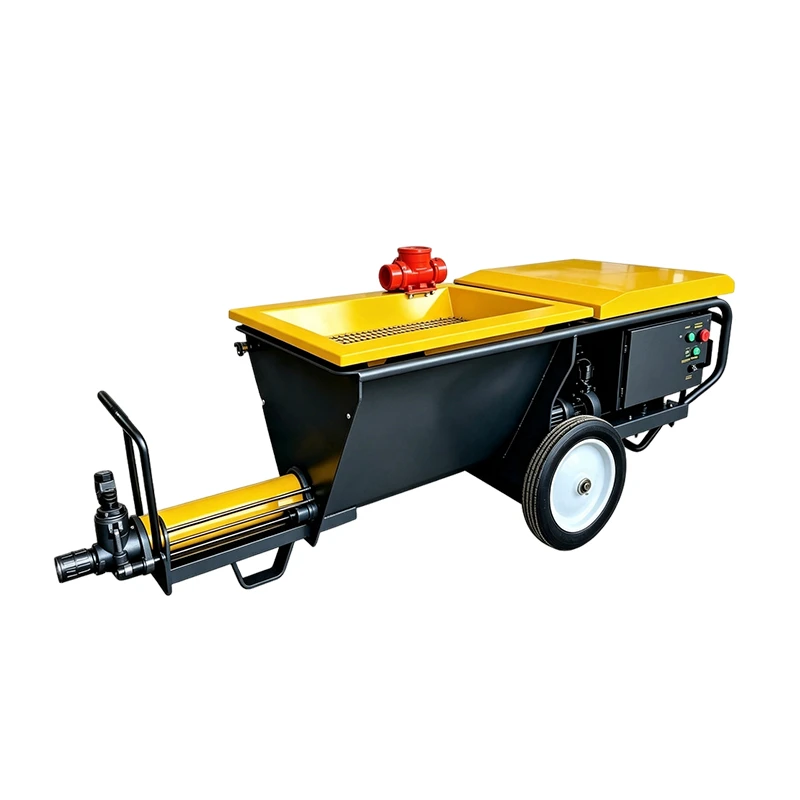

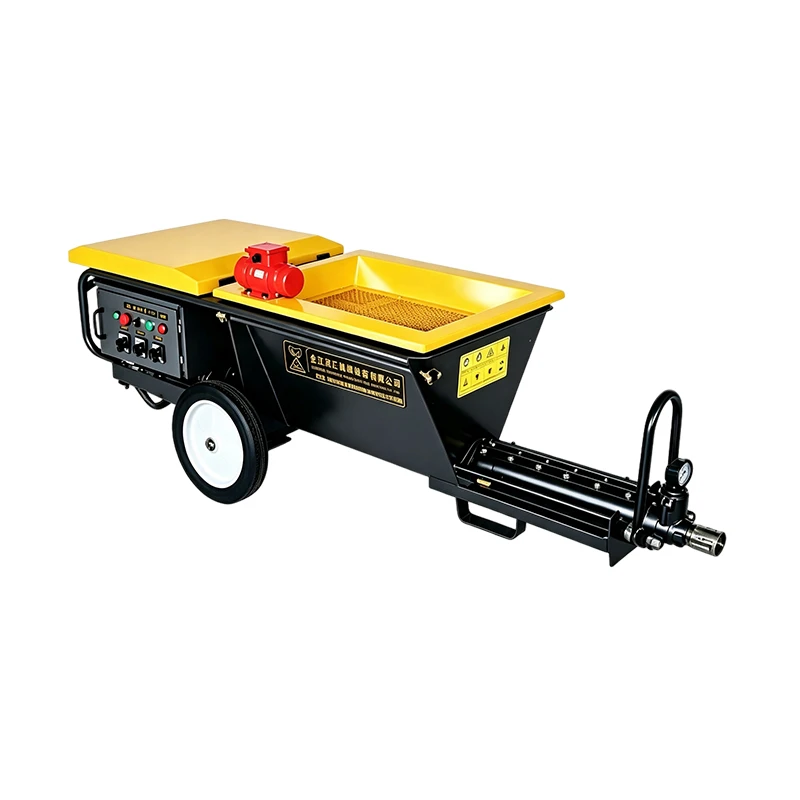

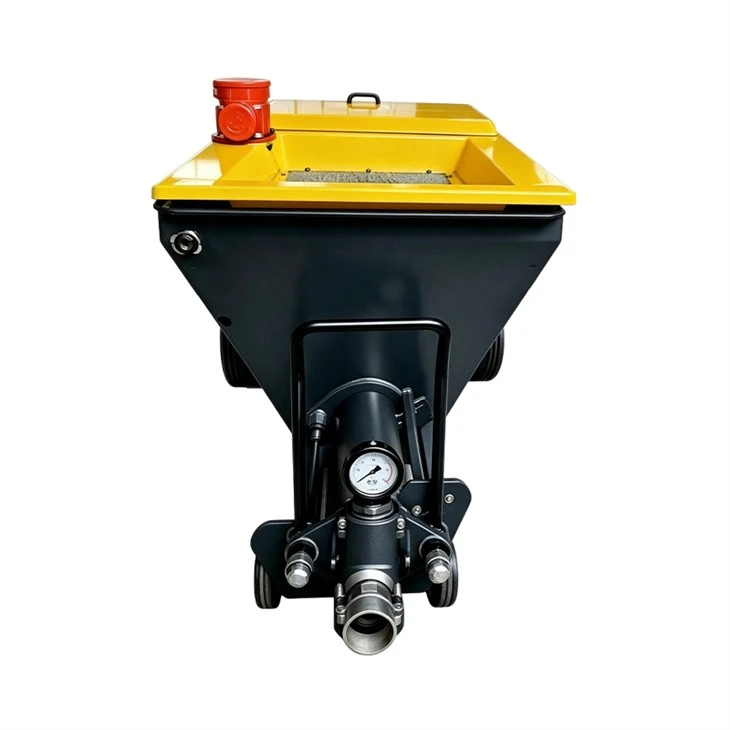

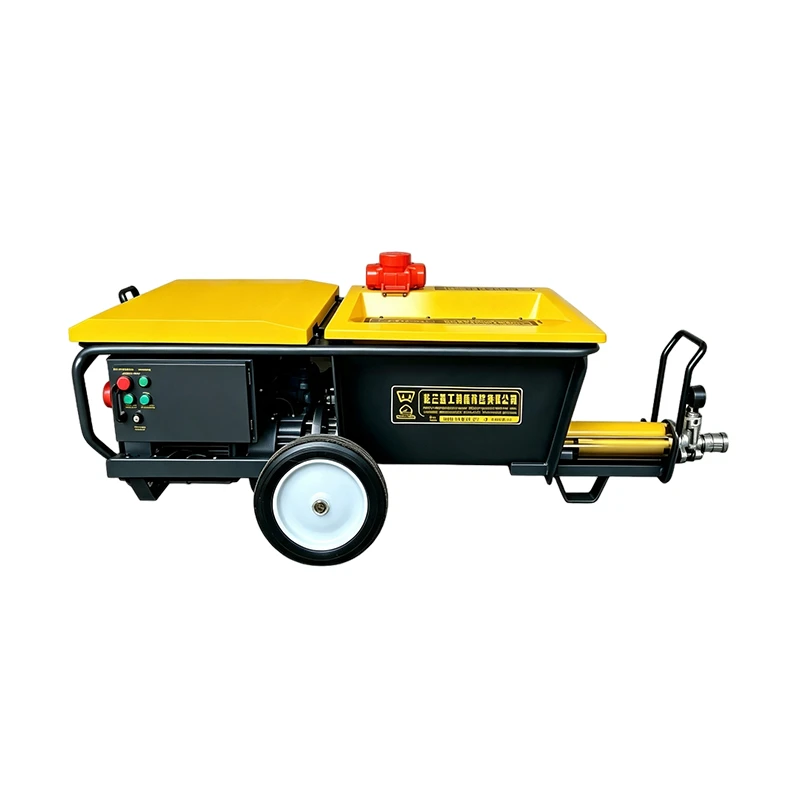

Wall Mortar Plastering Machine

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of wall mortar plastering machine in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced wall mortar plastering machine made in China, welcome to get quotation from our factory.

Wall mortar plastering machine has been optimized and upgraded drawing on field‑proven PUTZMEISTER technology imported from Germany. Wall mortar plastering machine supports compatibility with multiple polymer mortars, covering both cement‑based and gypsum‑based formulations. Wall mortar plastering machine can carry out pressure pumping and spraying work for UHPC, ECC, plastering, thermal‑insulation, fire‑resistant, bonding, finishing, interface, self‑levelling, anti‑corrosion and masonry materials, together with reinforcement grouting materials. It is widely used for building facade spraying, concrete 3D printing, electric metallurgy, road‑bridge tunnel works and water‑conservancy infrastructure, acting as key special‑purpose equipment for polymer mortar construction.

Wall mortar plastering machine provides several displacement selections together with stepless flow adjustment. Boasting high pumping pressure and long conveying reach, it works with regular mortar materials where aggregate particle size is ≤6 mm.

1. Power System

This unit comes equipped with a standard main motor supplied by German NORD, whose energy‑efficiency level meets international standards. Users may also select domestic asynchronous motors or internal‑combustion‑engine drive as optional set‑ups.

The reducer allows two speed‑control modes: mechanical continuously‑variable speed and variable‑frequency speed regulation. Fitted with heavy‑duty gear sets, robust bearings and high‑precision sealing parts, it shows good performance in resisting high temperature and wear.

2. Screw Pump Core Components

The stator rubber sleeve is made of polymer‑composite natural rubber. It has completed performance tests at the Polymer Professional Laboratory of Northwestern Polytechnical University, and its performance reaches the level of imported spare parts.

The rotor‑stator assembly uses a rail‑type quick‑fit structure. Field‑site disassembly and part replacement can be finished easily, which helps cut construction downtime.

3. Mixing and Transmission Mechanism

Built from high‑strength hexagonal steel, the main spindle offers good resistance against bending and torsion. It is fitted with intermittent spiral blades (different from standard continuous augers), alongside precision stainless‑steel universal joints on both ends. While running, it re‑mixes slurry within the hopper. This effectively avoids mortar delamination, sedimentation and bleeding, and improves overall material workability.

4. Long‑life Wear‑resistant Sealing System

The discharge pump base is one‑piece cast from stainless steel, delivering good wear‑proof and anti‑corrosion performance. Its inner wall creates low flow resistance, ensuring smooth material output and lowering clogging chances.

At the drive end, a composite protective structure is adopted, consisting of multi‑stage sealing rings, dual‑group sealing rings and diversion‑drainage grooves. Such design keeps slurry from entering the reducer and safeguards transmission parts from corrosion damage.

5. Wear‑resistant Protection Design

The rotor‑stator assembly applies in‑house wear‑resistant technology and is equipped with wear‑limit mechanisms. These features lower operational losses of equipment and prolong service life of wearing parts.
