Electric Rotary Spray Head

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of electric rotary spray head in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced electric rotary spray head made in China, welcome to get quotation from our factory.

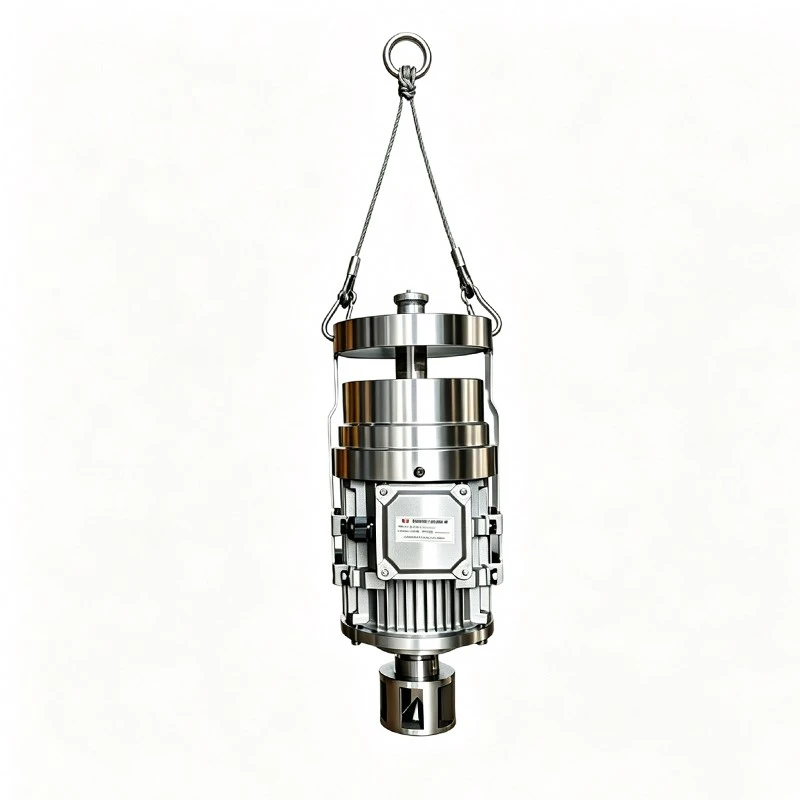

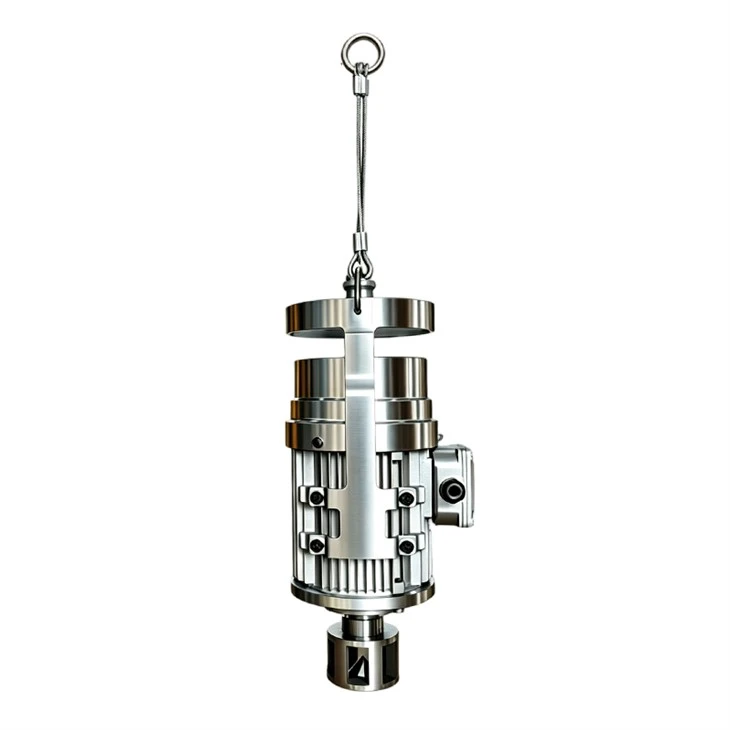

XTD Electric rotary spray head serves as one key component for repairing manholes and drainage‑pipe linings, and it is covered by a national patent. When developing this unit, our team studied proven overseas trenchless lining spraying technologies. We also carried out multiple localized optimizations and innovations, considering the complex working conditions found in domestic municipal drainage networks. The unit fits trenchless lining repair work for various old drainage manholes and pipes within China, and it acts as a core executing part for polymer‑mortar lining construction.





XTD Electric rotary spray head breaks away from the traditional structures widely used in the industry, such as bypass‑bend feeding and externally‑mounted tangential motor drive. It features a special one‑piece straight‑through flow channel. Driven by steady pump pressure from the mortar pump, polymer mortar flows straight into the rotary nozzle along the central axis of this rotary sprayer. The rotary nozzle spins at very high speed and creates even centrifugal spraying output. Thanks to this straight‑flow material path, the whole unit keeps its center‑of‑gravity aligned while running. There will be no eccentric shaking during operation.

This design greatly cuts mortar buildup and blockage risks inside bends. Even after long‑hour continuous work, the machine seldom suffers mortar clogging. Its discharge output stays steady with little fluctuation. Operators can set stepless continuous speed values. Site workers can tweak parameters according to actual damage levels of different manholes and target lining thickness, so they get precise control over sprayed lining thickness.

The main body is fully integrally machined from food‑grade 304 stainless steel. All rotating parts that touch mortar get dedicated wear‑resistant strengthening treatment. These components can run for a very long service life, even when handling polymer repair mortar filled with hard, high‑content fillers. Wear and mortar leakage rarely show up under long‑term, frequent operation.

Linings formed by this component have high density and good overall strength. Coating thickness stays consistent without obvious deviation. It works with polymer cement mortars of diverse formulas and mixing ratios. So far, this unit has been used in many manhole and underground‑pipeline lining‑repair projects across China, and it has earned positive feedback from multiple construction contractors.
