Pneumatic Rotary Spray Head

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of pneumatic rotary spray head in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced pneumatic rotary spray head made in China, welcome to get quotation from our factory.

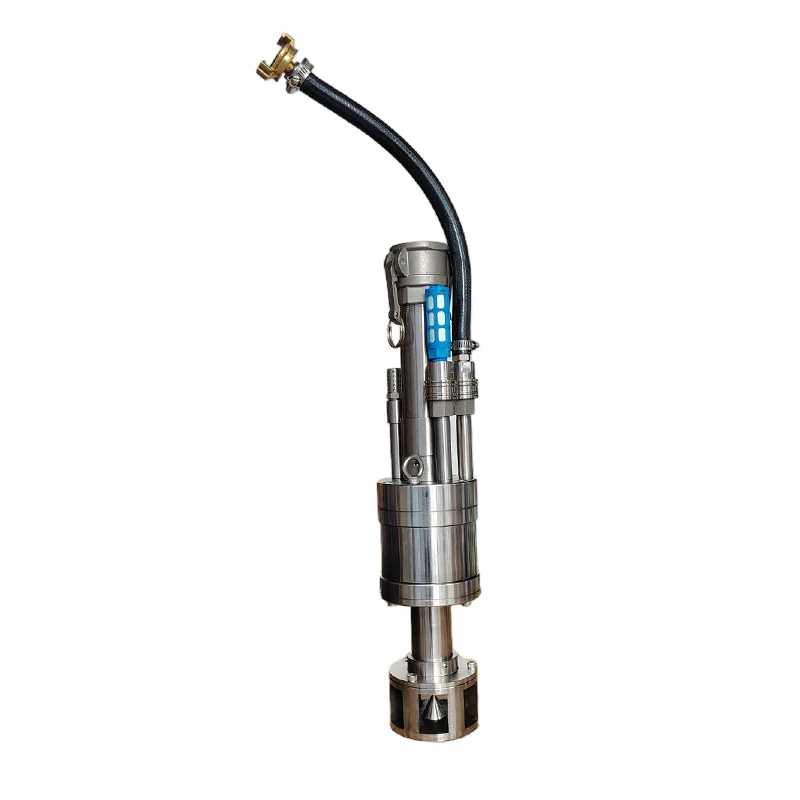

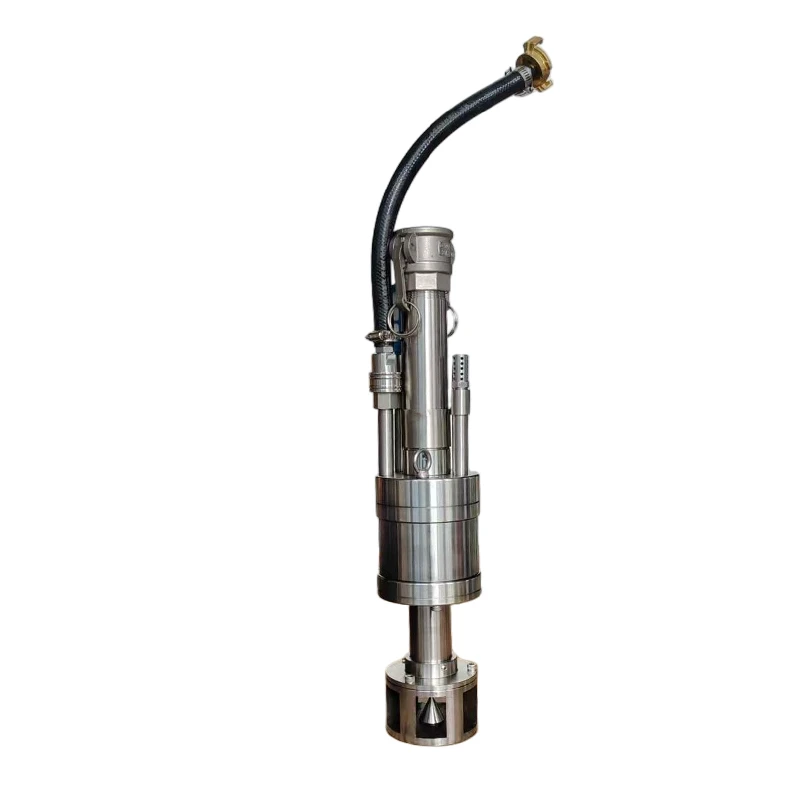

XTQ Pneumatic rotary spray head is a key part built for manhole and drainage‑pipe lining repair, and it holds a valid national patent. When we designed this unit, we drew on proven overseas lining‑spraying equipment technology. Plenty of targeted optimization and innovation work was carried out, considering real‑world trenchless municipal repair conditions in China. XTQ Pneumatic rotary spray head is custom‑made for polymer‑mortar lining spraying work, and it fits trenchless repair requirements for many types of manholes and underground drainage pipes.





This unit abandons old‑style structures widely seen on conventional spraying accessories, such as bypass‑bend feeding layout and external tangential motor drive. Instead, it uses a special one‑piece straight‑through structure. Driven by pump pressure, polymer mortar flows straight into the rotary nozzle along the sprayer's central axis. The rotary nozzle spins at extremely high speed and delivers steady, even centrifugal spraying output. Thanks to this bend‑free straight‑flow channel, the whole unit keeps its center‑of‑gravity along the central axis while running. No eccentric offset or vibration will occur during operation. There are no sharp direction changes or dead zones inside the mortar flow path. This lowers clogging risk and unexpected shutdowns during long continuous runs. Material output stays consistent without sharp fluctuations. Operators can set stepless speed values. Site crews can adjust spraying speed freely according to manhole depth, pipe diameter and target lining thickness. It gives precise control over single‑pass mortar thickness and greatly raises forming accuracy of the finished lining.

The complete main body is manufactured from 304 stainless steel. All rotating moving parts touching mortar receive dedicated wear‑resistant treatment. These components can deliver long service life even when working with repair mortars containing hard, highly abrasive fillers. Linings formed by this part feature high density and solid structural strength. Coating thickness keeps uniform, with no local material build‑up or uncovered spots. It works well with different polymer‑cement mortar formulas. Up to now, this component has seen wide use on many manhole and underground‑pipeline lining‑repair sites across China, and it acts as one core hardware for municipal trenchless repair projects.
