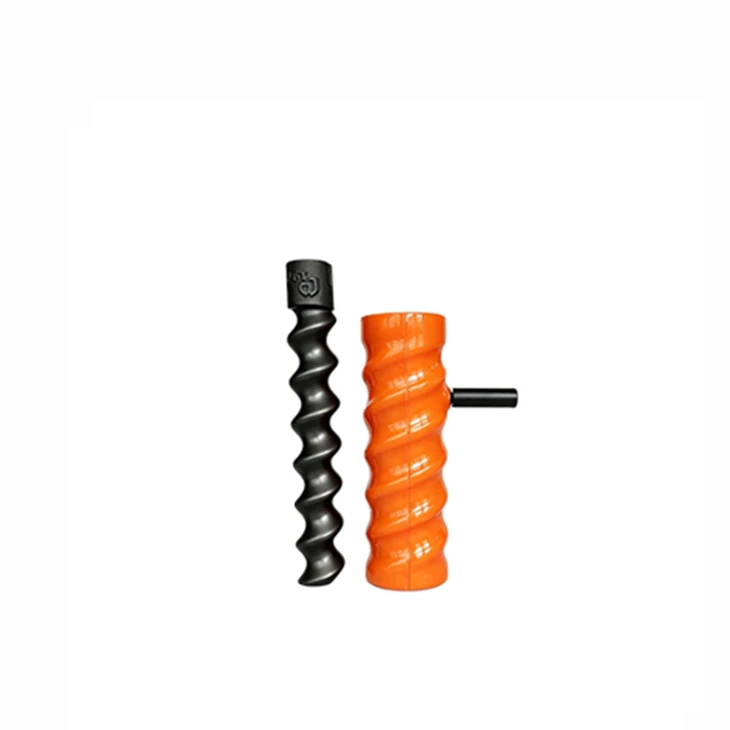

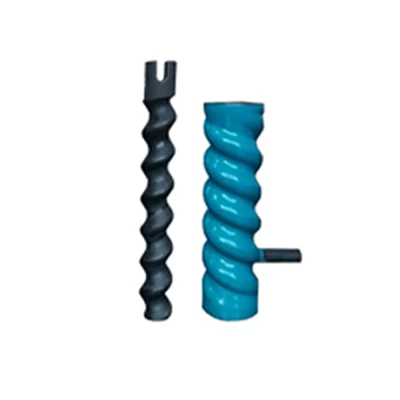

Mortar Pump Stator
Mortar pump Stator relies on special elastic rubber material and customized internal spiral cavity structure, forming an interference fit with the metal rotor. After the two are bonded together, a continuous closed independent conveying chamber can be constructed.
Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of mortar pump stator in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced mortar pump stator made in China, welcome to get quotation from our factory.
Mortar pump Stator relies on special elastic rubber material and customized internal spiral cavity structure, forming an interference fit with the metal rotor. After the two are bonded together, a continuous closed independent conveying chamber can be constructed. When the rotor rotates, it can stably push the mortar forward without any leakage or pressure relief problems. A high‑quality stator not only needs to have uniform and stable elasticity, but also withstand the continuous friction and alkaline erosion of mortar, sand and gravel. Therefore, it has high requirements for rubber formula and molding process, which directly determines the continuous operation ability of the spraying machine.
Features
Different models of mortar spraying machines correspond to different specifications of stators, and their inner cavity diameter and pitch will be customized and adjusted according to the pumping volume. Mortar pump Stator are suitable for small‑area plastering operations in home decoration, with a small volume and easy replacement. The large‑flow stator adapts to projects with a large area of spraying. It can withstand higher pumping pressure and has stronger stability in continuous operation. At present, there are also long‑life stators made of wear‑resistant formula modified rubber on the market. They can increase the service life by more than 30% compared to ordinary stators, and are more suitable for high‑frequency and high‑load engineering construction scenarios.
Technical Specifications
|
Model |
Color |
Output(L/Min at 200rpm) |
Output(L/Min at 400rpm) |
Maximum grain size (mm) |
Pumping pressure (bar) |
Length/Stator (mm) |
Rotor length without pin (mm) |
|
GL40 (D7-2) |
Red |
35 |
17 |
4 |
30 |
275/89 |
320 |
|
GL40 (D6-3) |
orange |
40 |
20 |
4 |
30 |
275/89 |
320 |
