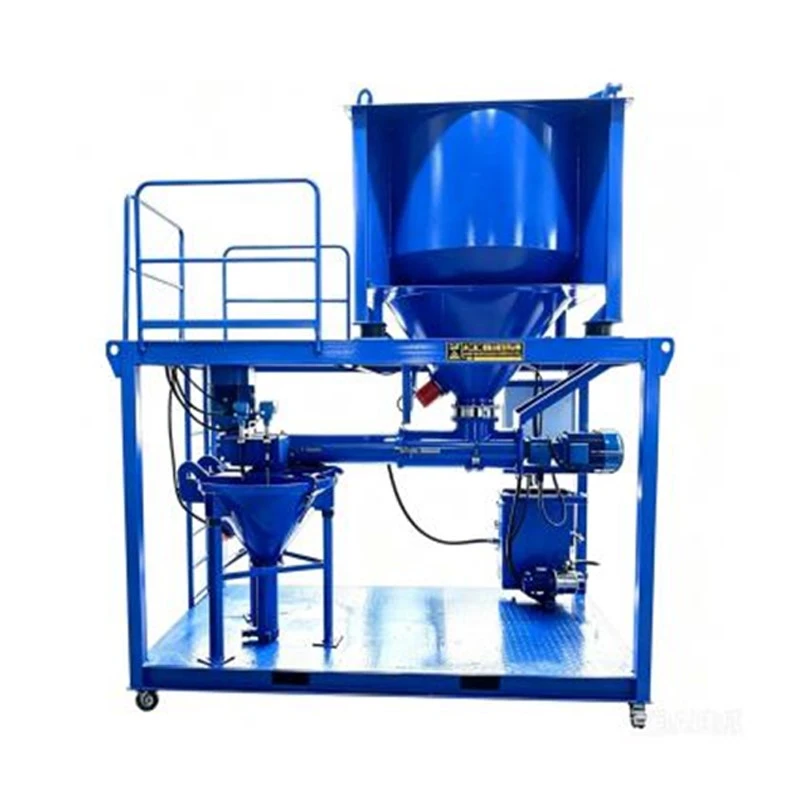

Refractory Mixing Spraying Machine

Model: WGHBP-U355-80
WGHBP-U355-80 Refractory mixing spraying machine unit completes the full workflow including material unpacking, mixing, pumping and spraying in one machine.

Send Inquiry

Product Introduction

Zhejiang Wengong Intelligent Technology Co., Ltd. is one of the leading manufacturers and suppliers of refractory mixing spraying machine in China. We are committed to providing high quality machinery with competitive price. If you're going to buy advanced refractory mixing spraying machine made in China, welcome to get quotation from our factory.

WGHBP-U355-80 Refractory mixing spraying machine unit completes the full workflow including material unpacking, mixing, pumping and spraying in one machine. WGHBP-U355-80 Refractory mixing spraying machine is factory fitted with two core assemblies: heated fluidized bed system and constant temperature quantitative water supply system. Inside the machine is a double helix stirring structure, which has been optimized via 3D modeling and fluid dynamics simulation. Reinforced mechanical design is applied to the stirring shaft, main frame and other load bearing parts. A liquid level sensor is installed to track slurry height inside the hopper in real time. It will auto adjust feeding volume, stirring speed and output flow, so as to realize full automatic closed loop control. This keeps mortar well mixed and guarantees stable output concentration, supporting non stop continuous construction work. This machine fits repair and refurbishment work for steel plant tundishes, ladles, tapping troughs and different high temperature furnace linings. It greatly improves the conventional repair construction procedures.

Technical parameters

Model		WGHBP-U355-80
Screw pump rotor/stator model		U355
Hopper volume		1.8 m³
Mixing capacity		60 L/min
Output		40-50 L/min
Horizontal conevying distance		100m
Vertical conveying distance		50m
Continuous mixer power		5.5 KW
Screw pump power		7.5 KW
Required compressed air		300 - 600 L/min,3 bar
Fluidization system(Optional)		200 - 500 L/min,0.5 bar
Water supply pressure		3 bar
Transport height		2000 mm(Excluding lye tank)
Size	Length	3055mm
	Width	1635mm
	Height	3370mm
Unladen weight		1560 kg
Loaded weight		4300 kg
Adaptive components		Double‑layer steel‑wire braided rubber slurry pipes: Φ50 mm, Φ38 mm, Φ32 mm, Φ25 mm.Optional items: air compressor, vibrating screen, Φ13 mm gas pipeline.

FAQ

Q:Can you make this product with my favourite color?

A:Yes,We can custom-made for you ,the MOQ according the type of product.

Q:How do you ship the goods and how long does it take to arrive?

A:We usually ship the samples by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. For bulk order, we usually ship the goods by Sea or by Air. It's up to our customers' demands.

Q:What's your MOQ ?

A:For ordinary items , we have enough storage, we could deliver soon after payment. For FOB terms, we asked for MOQ with one set.
